  Phoenix Rotary Ring Automatic Pallet Wrapper


PRRA-4000

Phoenix PRRA-4000 Automatic Rotary Ring Similar in concept to the Muller Octopus.
Zoom Image click on the image to enlarge
PRRA-4000 Rotary Ring Wrapper, 40RPM, 120+ Loads per hour, more speed, more productivity, more savings!
Similar in concept but 30% less expensive than the old Muller Octopus rotary ring series, the PRRA-4000 delivers maximum wrapping performance in a compact footprint design. Boost your productivity even more! With 40 RPM and 120+ load per hours. New high speed model with Heavy four-post frame design for stability. Because of its ability to start and stop the cycle anywhere on the load, the Phoenix PRRA rotary ring pallet wrapper reduces stretch film cost drastically when compared to conventional rotary arm and turntable style wrappers.
* Image shown with optional powered conveyors
CheckedFILM SAVING - SAVE AN EXTRA 30+ FEET OF STRETCH FILM WHILE STILL APPLYING THE SAME REQUIRED LOAD RETENTION WRAPS.

PRRA Rotary Ring Wrapper Film Savings
Save thousands of dollars in annual film savings compared to conventional wrappers.

Film Savings Design Drastically Reduces Film Usage
With conventional wrappers (rotary arm and turntables) the film clamp is fixed at conveyor height and the wrap cycle must start at the bottom and get to the top as fast as possible, apply the top wraps, spiral down with a controlled overlap to contain the load and finish at the bottom with bottom wraps and clamping and film tail treatment of the load. However the typically 30 ft. or so of stretch film applied getting to the top is effectively wasted film.

The PRRA Rotary Ring style wrapper is able to start at the bottom of a load and finish at the top without having to return back down to the clamp fixed at the conveyor. This means that you can save an extra 30+ feet of stretch film while still applying the same required load retention wraps.

PRRA-400 Rotary Ring Stretch Wrapper Film Saving Calculator
Try our Rotary Ring Film Cost Calculator and learn how you can save tens of thousands of dollars every year!
Save an extra 30+ feet of stretch film while still applying the same required load retention wraps. The result is thousands of dollars in annual film savings compared to conventional wrapper. In the case of a 60 loads per hour application this results in payback of the purchase price in approx 3 years in film savings alone compared to other conventional wrappers.

Calculate how much you can save yearly using a Rotary Ring Wrapper compared to a Rotary Arm or Table Wrapper
Use our Rotary Ring Film Saving Calculator here enter your application and load information to calculate how much you can save yearly. Try It Now!

CheckedFASTER - 40RPM, 120+ LOADS PER HOUR, MORE SPEED, MORE PRODUCTIVITY, MORE SAVINGS!
As opposed to conventional stretch wrappers (rotary arm and turntables) in which the film clamp is fixed at conveyor height and the wrap cycle must spiral down with a controlled overlap to finish at the bottom with bottom wraps, clamping and film tail treatment of the load. The PRRA film clamp and film tail treatment travels vertically with the film carriage allowing the PRRA to start at the bottom of the load and finish at the top without having to return back down to the clamp fixed at the conveyor.


CheckedFLEXIBLE - PHOENIX OPERATOR INTERFACE CONTROL OFFERS OPTIONS AND FLEXIBILITY AS STANDARD!

More stretch wrapping controls and flexibility as standard
Control panel with Micrologix PLC, AB HMI and Nema 12 enclosure.
Learn more here
Micrologix PLC, and Allen Bradley Operator Interface plus the rotary ring design allows for virtually unlimited wrap patterns due to the options and features of the The Allen Bradley MicroLogix PLC and the ability to start and complete a wrapping cycle anywhere during the wrap cycle. Custom wrapping cycles can be added to suit the application requirements.

Multiple Standard Wrapping Cycles for Improved Film Economies Ex: Std. Wrap Cycle, Top Banding, Double Wrap Cycle, Split wrap cycle, Banding. Includes Control panel with Nema 12 enclosure.
Learn more about the PRRA-4000 Phoenix Operator Interface features here
CheckedBUILT IN HEAT SEALER AND FILM TAIL TREATMENT - SEALS THE LAST LAYER OF STRETCH FILM ENSURING NO STRETCH FILM TAIL

The pneumatic controlled cut & wipe system automatically cuts the film and applies the film tail to the load.
Watch more rotary ring pallet wrapper videos here
Welds the film tail to the previous layers of stretch film, thus positively securing the tail to the load. This is a standard built-in feature already included in the price at no extra cost.
The PRRA key feature is that the film clamp and film tail treatment travels vertically with the film carriage. The PRRA is able to start at the bottom of a load and finish at the top without having to return back down to the clamp fixed at the conveyor.
Learn more about the Rotary Ring Wrapper built-in Heat Sealer and Film Tail Treatment here
CheckedCOMPACT - COMPACT FOOTPRINT DESIGN TAKES 25% LESS SPACE THAN CONVENTIONAL ROTARY ARM STYLE WRAPPERS

More stretch wrapping controls and flexibility as standard
Zoom Image click on the image to enlarge
Do not waste your warehouse space!
A basic principle to not wasting your warehouse space is evaluating and selecting the most space efficient storage equipment. Using packaging equipment with a compact footprint is a key factor to reducing your space requirements. The PRRA takes 25% less space than conventional rotary arm style wrappers. Designed to be the smallest footprint in the industry, the PRRA will solve many space constraint applications where fitting into an existing space was the main issue.

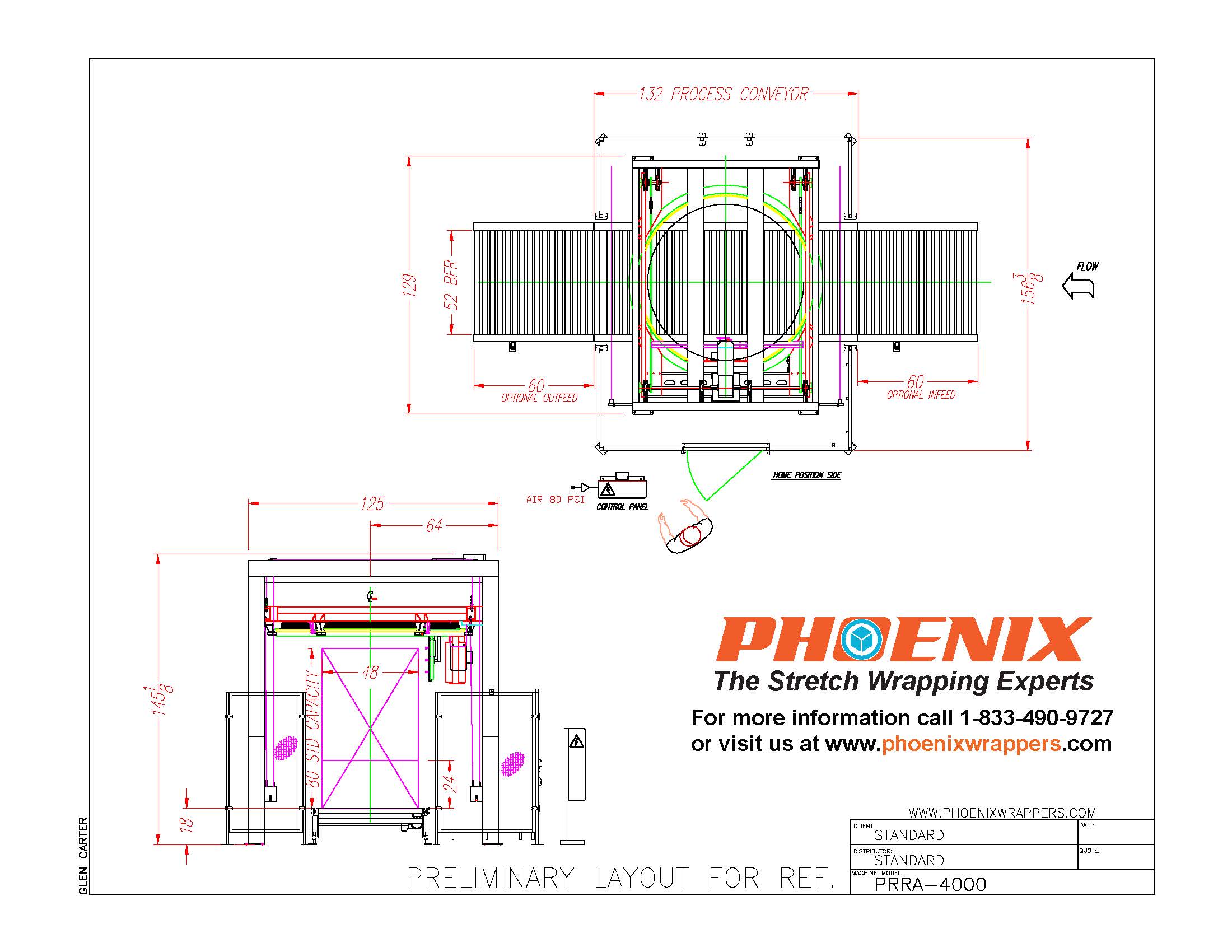

Do not waste premium floor space. The PRRA fits into tight locations along existing conveyor lines, the dead zones like corners areas and along wall, or anywhere where conventional wrappers can't fit due to the size. Click here to view the PRRA-4000 machine layout

OVERVIEW OF THE PHOENIX PRRA-4000 ROTARY RING PALLET STRETCH WRAPPER

  • Film Savings Design Drastically Reduces Film Usage
    • The PRRA Rotary Ring style wrapper is able to start at the bottom of a load and finish at the top without having to return back down to the clamp fixed at the conveyor. This means that you can save an extra 30+ feet of stretch film while still applying the same required load retention wraps.
      The result is thousands of dollars in annual film savings compared to all conventional wrappers.
      Learn more about the PRRA-4000 Rotary Ring Stretch Wrapper Film Saving features

The rotary ring design allows for virtually unlimited wrap patterns due to the ability to start and complete a wrapping cycle anywhere during the wrap cycle. Custom wrapping cycles can be added to suit the application requirements.


  • Multiple Standard Wrapping Cycles for Improved Film Economies:
    • Std. Wrap
    • Top Banding
    • Double Wrap

Why would you pay extra money with competitive models if you can have these feature
already included in the price at no extra cost?


  • Capacity
    • 48" W x 50" L MAX Pallet Size 80" H
    • 36" W x 36" L MIN Pallet Size 24" H

  • Speed
    • 40 RPM stretch wrapping speed.



Similar in concept to the Muller Octopus 505, Octopus 606 and Octopus 808, the Phoenix PRRA Ring machine provides revolutionary film savings when compared to Rotary Table or Arm designs. However, the phoenix PRRA Ring machine is less expensive when compared to the old Muller Octopus Rotary Ring machine.



CONTROL PANEL
Phoenix PRRA-4000 Rotary Ring Control Panel
Control panel with Nema 12 enclosure, Micrologix PLC, and Allen Bradley Operator Interface (HMI).
Learn more...

FILM CARRIAGE
Phoenix PRRA-4000 film carriage
A solid design concept both mechanically and electrically for a durable, dependable powered pre-stretch film carriage with added operator safety in mind.
Learn more...

RING LIFT DRIVE
5 HP motor with VFD, 4-point lifting system with #60 ANSI roller chain, Efficient and reliable flat cable and power track guidance , all steel contruction for ring and lift frame.

ALLEN BRADLEY VFD
Phoenix PRRA-4000 Rotary Ring Stretch Wrapper
Allen Bradley Power Flex Series variable Frequency Drive controls all motors on the machine to ensure maximum performance.
Learn more...


TRAVELING FILM CLAMP
Phoenix PRRA-4000 Rotary Ring Stretch Wrapper Travelling Clamp
The PRRA key feature is that the film clamp and film tail treatment travels vertically with the film carriage. This design feature enables the machine to literally start and finish a wrap cycle anywhere on the pallet.
Learn more...
