Phoenix Non-Conveyorized High Profile Automatic Stretch Wrap Machine

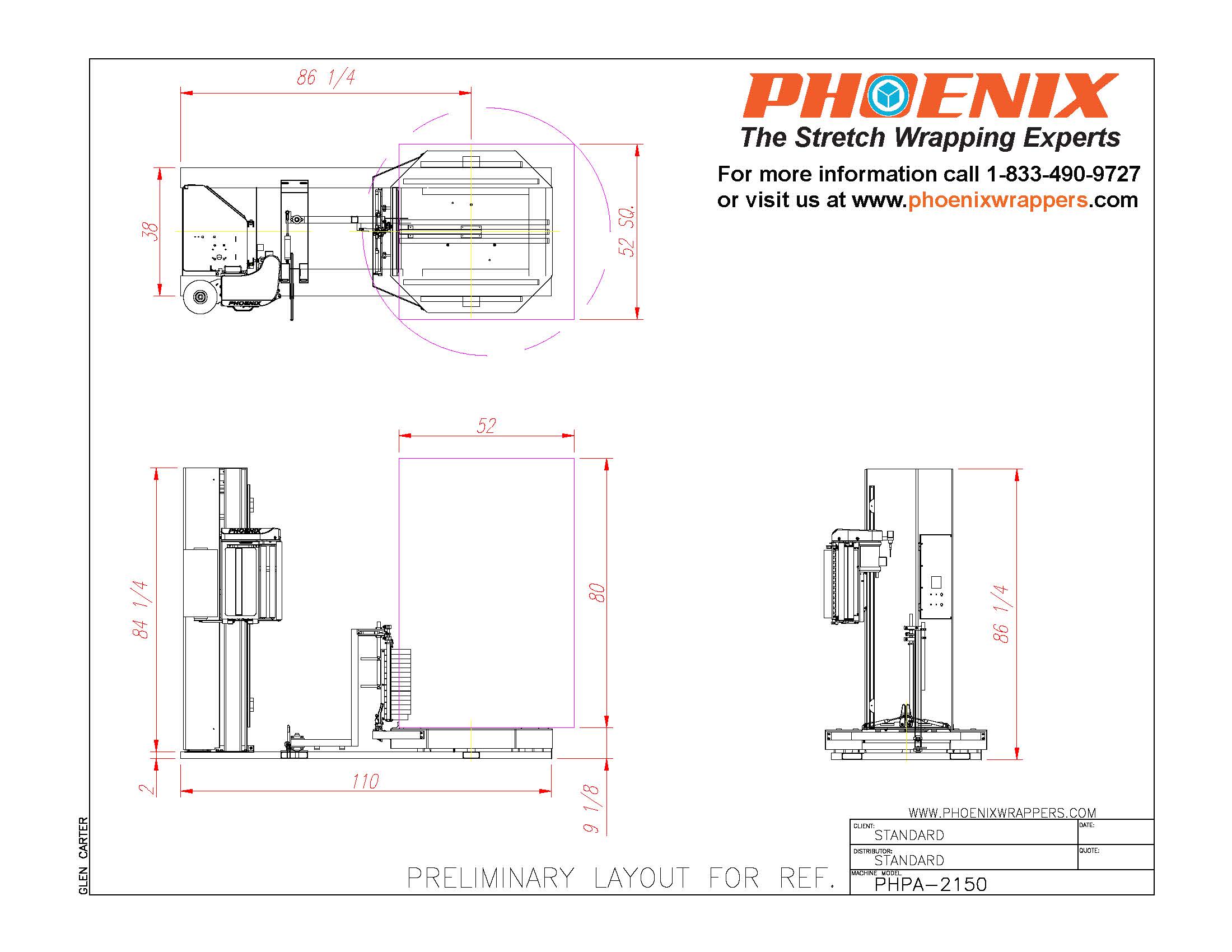

PHPA-2150
Overview
Overview of the Phoenix PHPA-2150 Pallet Stretch Wrapper:
A true automatic stretch wrapper c/w stretch film clamp, Impulse stretch film cutter, and positive film tail treatment. Don’t be fooled by competitive models that mask semi-automatic machines as automatics but do not provide film tail treatment.
Don’t get off the forklift. Place the load on the table and pull the cord. The Phoenix stretch wrapper does the rest.
52” x 52” MAX Pallet Size (74" Load Diagonal) Largest Capacity in its Class.
15 RPM stretch wrapping speed. Fastest in its Class.
Best in Class Flexibility c/w PLC provides all features as standard…. including those not available (or an upcharge) on competitive models.
Complete Wrapping Flexibility including:
3 Wrapping Cycles: Wrap up, Wrap up/down, Top Cover Pause.
Reinforce Wrap and Cycle pause capability.
Selectable Overwrap Height..
Stretch Film Saving features such as:
Separate 1-9 top and bottom wrap count provides up to 15% Savings. Apply only the stretch film required at the top separately from the bottom compared to competitive models that applies a common amount to top & bottom regardless of need.
Separate up and down carriage speeds eliminates the time and wasted stretch film applied with competitor’s common speed control. (up to 10% Savings)
“Best in Class” Safety features:
Automatic Film loading Safety Shut-off switch automatically shuts down power during stretch film loading by Operator.
Easy Film Loading carriage with double lock door control for guaranteed locking.
Mushroom Twist & Pull E-Stop Button.
Standard Superior Features
5,000 lbs. weight capacity turntable c/w 9 Heavy Duty Casters on Welded Supports.
Variable Speed Drives control all motors for maximum flexibility.
Dual ANSI #50 Chain Pre Stretch Carriage Lifting System.
Electronic stretch film tension control with Analog electronic Sensor provides the ultimate in feedback control.
Heavy-Duty structural steel tubing and frame construction.
Steel cross member reinforcement in tower and turntable.
9" Turntable Elevation – Competitive models are typically 12" to 13".
Forklift portable from Front and Back of machine.
Controls enclosed in tower.
Automatic Load Height sensing photoeye is mounted in the stretch film carriage with adjustable track.
Guaranteed For Life Prestretch rollers with 245% prestretch ratio as standard.
Full 3 year Warranty.
Available Stretch Wrapping Options
Split Base.
67” Turntable for Oversized Loads.
30" Prestretch film carriage for wider stretch film.
Scale Packages.
Extended Wrap Height Capacity up to 116".
Extended load diagonal for larger pallet sizes.
Many other options available.
CONTROL PANEL
Pushbutton Control Panel with Variable Speed Drive.
FILM CARRIAGE
20" Easy Threading Powered Prestretch Film Carriage.
TURNTABLE DRIVE
Turntable c/w 9 Heavy Duty Casters on Welded Supports.
TOWER SYSTEM
Dual chain Carriage Lift and Tower Systems.
CLAMP CUT AND BRUSH
Pneumatic Controlled Cut & Wipe System automatically cuts the film and applies the film tail to the load.
