Phoenix Conveyorized Rotary Turntable Automatic Pallet Wrapper |
|
Meets most Stretch Wrapping Applications and is customized to meet your exact requirements
Designed to be a durable dependable machine that will, day in and day out, tackle all your tought applications, while providing the maximum in customer flexibility in case your requirements change. Up to 35 loads Per Hour, 12 RPM Wrapping Speed, 4000 Lbs Load Weight Capacity.
|
|
|
|

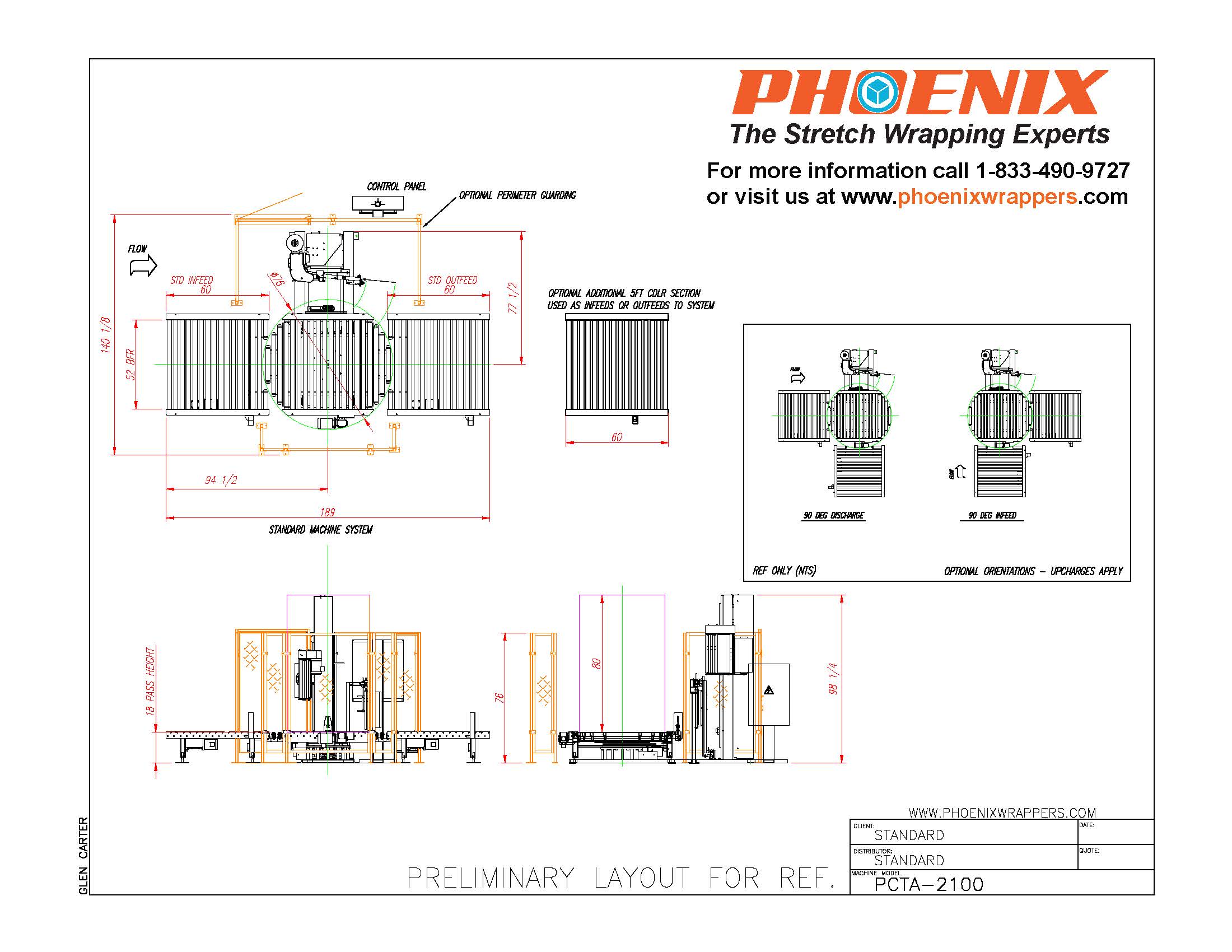

Overview of the Phoenix PCTA-2100 Pallet Stretch Wrapper:
|
|
| |
- Capacity
- 50 x 50 MAX Pallet Size 80" Load Diagonal, (Wider Conveyors May Be Required)
|
|
| |
- Speed
- 12 RPM stretch wrapping speed. Fastest in its Class.
|
|
|
| |
- Stretch Film Saving features such as:
- Separate 1-9 top and bottom wrap count provides up to 15% Savings. Apply only the stretch film required at the top separately from the bottom compared to competitive models that applies a common amount to top & bottom regardless of need.
- Separate up and down carriage speeds eliminates the time and wasted stretch film applied with competitor’s common speed control. (Up to 10% Savings).
Learn more about the Features of our Touchscreen Control Panel
|
|
Why would you pay extra money with competitive models if you can have these feature
already included in the price at no extra cost? |
|
| |
- Standard Superior Features
- 4,000 lbs. weight capacity.
- Ring Bearing Driven Heavy Duty Turntable
- Variable Speed Drives control all motors for maximum flexibility.
- Electronic stretch film tension control with Analog electronic Sensor provides the ultimate in feedback control.
- Dual Chain Carriage Lift Drive.
- Pneumatic Controlled Cut & Wipe System
- PLC controller with Touchscreen Operator Interface offers unlimited flexibility
- Automatic Load Height sensing photoeye is mounted in the stretch film carriage with adjustable track.
- 12 RPM (higher speeds are available)
- 18” T.O.R height (Top Of Roller height) standard. Other heights available.
- Warranty period for this stretch wrapping system is 3 years.
Guaranteed For Life Prestretch rollers with 245% prestretch ratio as standard.
Please read our full terms and conditions here
|
|
| |
- “Best in Class” Safety features:
- Film loading Safety Shut-off switch automatically shuts down power during stretch film loading by Operator.
- Easy Film Loading carriage with double lock door control for guaranteed locking.
- Mushroom Twist & Pull E-Stop Button.
|
|
| |
- Stretch Wrapping Options:
- 30" Prestretch Carriage for wider stretch film.
- 15 RPM High Speed Rotation
- 18 RPM Rotation Speed
- Forklift Loading/Unloading Station (Photo-Eye)
- 5 Ft Powered Roller Conveyor wit VFD Control
- Low Film Alarm
- Electric Top Platen for Variable Load Height
- Phoenix Integral Top Sheet Dispenser System
- Inline Top Sheet Dispenser System
- Many other options are available...
View all available options for this Stretch Wrapper
|
|
|
|
| |
|
|
| Touchscreen control panel with variable speed drive. |
|
|
|
| |
|
| 20" Easy Threading powered prestretch film carriage. |
|
|
|
| |
|
| Dual chain carriage lift drive. |
|
|
|
| |
|
| Ring bearing driven heavy duty turntable. |
|
|
|
| |
|
|
|
| Pneumatic Controlled Cut & Wipe System automatically cuts the film and applies the film tail to the load. |
|
|
|
| |
|
|
|
